Understanding Energy Storage Systems and Their Role in Modern Energy
Energy storage systems play a vital role in modern energy infrastructure. These systems capture energy generated from various sources and store it for later use, ensuring a steady and reliable supply. Their purpose extends beyond storage; they enhance energy efficiency, reduce waste, and support the integration of renewable energy sources.
The growing demand for sustainable energy solutions highlights the importance of energy storage. For instance, the global energy storage systems market is projected to expand from 222.79 GW in 2022 to 512.41 GW by 2030, reflecting a compound annual growth rate (CAGR) of 11.6%. This growth underscores their critical role in maintaining grid reliability, managing renewable energy intermittency, and meeting future energy demands.
Key Takeaways
Energy storage systems save energy to use later. They help keep power steady and improve energy use.
The energy storage market is growing fast. It may reach over 512 GW by 2030, showing its big role in today’s energy systems.
There are many types of energy storage, like batteries, pumped water, and heat storage. They help in different ways and make power grids stronger.
These systems work well with renewable energy. They store extra energy when there’s a lot and release it when there’s less.
New ideas like solid-state batteries and hydrogen storage could make energy storage better and more eco-friendly.
What Are Energy Storage Systems?
Definition and Objectives
Energy storage systems are technologies designed to capture energy for use at a later time. These systems play a critical role in balancing supply and demand, ensuring a reliable energy supply. They store surplus energy during periods of low demand and release it when demand increases. This process helps optimize energy use and reduces waste.
The primary objectives of energy storage systems include:
Enhancing the reliability and efficiency of energy infrastructure.
Supporting the integration of renewable energy sources like solar and wind.
Improving grid stability by managing fluctuations in energy output.
Educating stakeholders about the benefits and potential challenges of energy storage technologies.
Collaborating with industry and government to advance energy storage solutions.
Recent research highlights the importance of performance metrics for evaluating these systems. For example, Guo et al. (2020) developed a model to optimize the placement of energy storage systems, while Xiao et al. (2023) proposed a comprehensive evaluation system focusing on technical, economic, and social benefits. These advancements demonstrate the growing emphasis on improving energy storage technologies.
How Energy Storage Systems Work
Energy storage systems operate by capturing energy from various sources and storing it in a usable form. The stored energy can then be released when needed, ensuring a consistent power supply. The process typically involves three key stages:
Charging: Energy is collected from sources such as solar panels, wind turbines, or the grid.
Storage: The energy is stored in a medium, such as a battery, thermal reservoir, or mechanical system.
Discharging: The stored energy is converted back into electricity or heat and supplied to the grid or end-users.
For instance, battery energy storage systems use chemical reactions to store and release energy. These systems are highly efficient and widely used for grid stabilization and renewable energy integration. Other technologies, such as pumped storage hydropower (PSH), store energy by pumping water to a higher elevation and releasing it to generate electricity when needed. The largest PSH facility in the U.S. has a capacity of about 2,860 MW, showcasing the scalability of such systems.
The operational process of energy storage systems often involves engineering, permitting, installation, and commissioning. Each step ensures the system integrates seamlessly with existing energy infrastructure. Acceptance tests verify the system's performance, ensuring it meets technical and operational standards.
Benefits of Energy Storage Systems
Energy storage systems offer numerous benefits that enhance the efficiency and reliability of modern energy infrastructure. These include:
Grid Stability: By smoothing fluctuations in energy output, storage systems ensure a consistent power supply. This is particularly important for renewable energy sources, which are inherently intermittent.
Energy Efficiency: Storage systems capture surplus energy during production and release it during peak demand, reducing energy waste.
Cost Savings: By optimizing energy use, these systems lower operational costs and reduce the need for expensive grid upgrades.
Environmental Impact: Energy storage supports the transition to renewable energy, reducing reliance on fossil fuels and lowering greenhouse gas emissions.
Flexibility: Storage systems can adapt to various applications, from residential use to large-scale industrial projects.
Case studies demonstrate the effectiveness of energy storage in enhancing energy efficiency. For example, energy storage reconciles intermittent generation and load effectively, providing a cost-effective method for maintaining grid stability. Additionally, the flexibility of storage systems adds significant value relative to their cost, making them a vital component of modern energy infrastructure.
Types of Energy Storage Systems
Energy storage systems come in various forms, each tailored to specific applications and performance requirements. These systems play a crucial role in modern energy infrastructure by ensuring reliability, efficiency, and adaptability.
Mechanical Energy Storage
Mechanical energy storage systems utilize physical processes to store and release energy. These systems are often employed for large-scale applications due to their durability and scalability. Common types include:
Pumped Storage Hydropower (PSH): Water is pumped to a higher elevation during low demand periods and released to generate electricity during peak demand. PSH remains the most widely used form of mechanical energy storage, with a global capacity exceeding 160 GW.
Flywheel Energy Storage: Energy is stored as rotational kinetic energy in a spinning flywheel. Flywheels offer rapid response times and high efficiency, making them ideal for grid stabilization.
Mechanical systems excel in long-term energy storage and high power output. However, their reliance on specific geographical conditions, such as elevation for PSH, limits their deployment in certain regions.

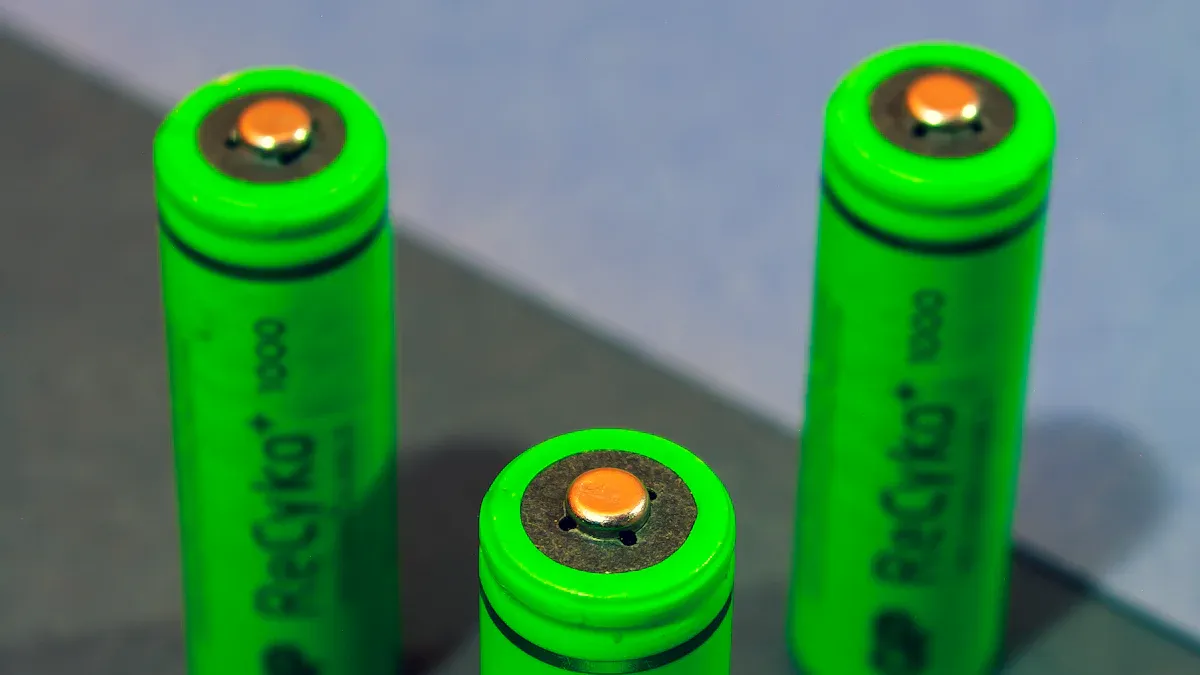

Electrochemical Energy Storage (Batteries)
Electrochemical energy storage systems, commonly known as batteries, store energy through chemical reactions. These systems are versatile and widely used across residential, commercial, and industrial applications. Popular battery types include:
Lithium-Ion Batteries: Known for their high energy density and efficiency, these batteries dominate the market. They are extensively used in electric vehicles and grid energy storage.
Advanced Lead-Acid Batteries: These batteries offer improved performance and reliability compared to traditional lead-acid batteries. They are often adopted for grid energy storage due to their cost-effectiveness.
Flow Batteries: These systems use liquid electrolytes to store energy, providing scalability and long cycle life.
Battery Type | Energy Density | Efficiency | Applications |
|---|---|---|---|
Lithium-Ion | High | High | EVs, Grid Storage |
Advanced Lead-Acid | Moderate | Moderate | Grid Storage |
Flow Batteries | Low | High | Large-Scale Applications |
Comparative studies highlight the reliability of different battery topologies. For instance, proposed reconfigurable structures exhibit low losses and high reliability, making them suitable for critical applications.
Thermal Energy Storage
Thermal energy storage systems capture and store energy in the form of heat or cold. These systems are particularly effective for applications requiring temperature control, such as heating, cooling, and industrial processes. Key technologies include:
Molten Salt Systems: These systems store heat generated from solar power plants, enabling energy use during nighttime or cloudy conditions.
Ice-Based Cooling Systems: Ice is produced during off-peak hours and used for cooling during peak demand periods, reducing energy costs.
Standard/Guideline | Description |
|---|---|
Specifies testing and rating requirements for thermal storage equipment. | |
AHRI Guideline T | Outlines minimum information for user-specified application requirements. |
Thermal energy storage systems offer high efficiency and reliability. They also support renewable energy integration by addressing intermittency challenges.
Chemical Energy Storage
Chemical energy storage systems store energy in chemical bonds and release it through controlled reactions. These systems are highly versatile and can be used for both short-term and long-term energy storage. Hydrogen storage is one of the most prominent examples in this category. It involves producing hydrogen through electrolysis, storing it in tanks, and converting it back into electricity using fuel cells. This method offers a clean and efficient way to store renewable energy.
Another example is synthetic fuels, which are created by combining hydrogen with carbon dioxide. These fuels can be used in existing infrastructure, such as gas turbines and internal combustion engines, making them a practical solution for reducing carbon emissions. Ammonia, a hydrogen-rich compound, is also gaining attention as a chemical energy carrier due to its high energy density and ease of transport.
Chemical energy storage systems offer several advantages. They provide high energy density, making them suitable for large-scale applications. They also enable long-term storage, which is essential for balancing seasonal variations in renewable energy production. However, challenges such as high costs and energy losses during conversion processes need to be addressed to make these systems more viable.
Emerging Energy Storage Technologies
Emerging energy storage technologies are paving the way for more efficient and sustainable energy systems. These innovations aim to address the limitations of existing technologies and meet the growing demand for energy storage.
Several promising technologies have been validated through recent pilot projects. The Avalon Battery flow battery system, for instance, uses a rechargeable flow battery that stores energy in an electrolyte solution. This system has demonstrated a longer cycle life and quick response times, making it ideal for grid applications. Another innovation is the hybrid energy storage system developed by Southern Research in collaboration with the Department of Defense. This system focuses on combining different storage technologies to achieve cost-effective and efficient energy solutions.
Other emerging technologies include solid-state batteries, which offer higher energy density and improved safety compared to traditional lithium-ion batteries. Supercapacitors are also gaining traction for their ability to deliver rapid bursts of energy, making them suitable for applications requiring high power output.
These advancements highlight the potential of emerging technologies to revolutionize the energy storage landscape. By addressing current challenges and leveraging innovative solutions, these systems can play a crucial role in building a sustainable energy future.
Energy Storage and Renewable Energy Integration
Addressing Intermittency in Renewable Energy
Renewable energy sources like solar and wind are inherently intermittent. Solar panels generate electricity only when the sun shines, and wind turbines depend on wind availability. This variability creates challenges in maintaining a consistent energy supply. Energy storage systems play a crucial role in addressing these challenges by storing excess energy during periods of high generation and releasing it when generation drops.
Studies have quantified the seasonal and inter-annual intermittencies of solar and wind resources. A modified cumulative supply/deficit analysis has shown how energy shortfalls occur when renewable energy supplies fail to meet demand. This analysis provides valuable insights into whether to install additional renewable capacity or deploy energy storage systems to ensure reliable energy services. By bridging the gap between supply and demand, energy storage enhances the reliability of renewable energy integration.
For example, battery energy storage systems can store surplus solar energy generated during the day and release it at night when demand peaks. Similarly, pumped storage hydropower can store energy by pumping water to a higher elevation during low-demand periods and releasing it to generate electricity during high-demand times. These solutions ensure that renewable energy can meet demand consistently, even during periods of low generation.
Enhancing Grid Stability with Energy Storage
Grid stability is essential for ensuring a reliable energy supply. Fluctuations in energy output from renewable sources can destabilize the grid, leading to power outages and inefficiencies. Energy storage systems mitigate these issues by providing rapid responses to changes in energy supply and demand.
The Hornsdale Power Reserve in South Australia demonstrates the effectiveness of energy storage in enhancing grid stability. This large-scale lithium-ion battery storage facility has significantly reduced costs associated with frequency control ancillary services. It has also provided rapid responses to power outages, improving grid resilience. Such examples highlight the critical role of energy storage in maintaining a stable and efficient grid.
Energy storage systems also help balance the grid by storing excess energy during periods of low demand and releasing it during peak demand. This capability reduces the need for expensive grid upgrades and ensures a consistent energy supply. By smoothing fluctuations in energy output, energy storage systems support the integration of renewable energy while maintaining grid stability.
Supporting Decentralized Energy Systems
Decentralized energy systems, which rely on localized energy generation and storage, are becoming increasingly popular. These systems reduce reliance on centralized power plants and enhance energy resilience. Energy storage systems are essential for supporting decentralized energy systems by stabilizing intermittent power supply and managing peak loads.
In California, the Net Energy Metering (NEM) program incentivized homeowners to sell surplus solar power back to the grid. However, changes in the program reduced profitability during peak generation times, leading to increased investments in energy storage. Homeowners now use energy storage systems to store surplus solar energy and use it during periods of high demand, reducing their reliance on the grid.
Additionally, the deployment of hundreds of gigawatt-hours of batteries has expanded supply chains to support decentralized energy systems. These systems enable communities to generate and store their own energy, enhancing energy independence and resilience. By integrating energy storage solutions, decentralized energy systems can effectively manage renewable energy intermittency and ensure a reliable energy supply.
Advancements in Energy Storage Technologies
Innovations in Battery Technology
Recent advancements in battery technology have significantly improved energy storage systems. Researchers have focused on enhancing energy density, safety, and lifespan. For instance, single-crystal electrode designs developed at Dalhousie University allow batteries to endure over 20,000 charge cycles, equating to an impressive lifespan of 8 million kilometers. Similarly, lithium-sulfur batteries, known for their lightweight and affordability, now feature porous electrodes capable of retaining 80% capacity after 25,000 cycles. These innovations make batteries more efficient and durable for various applications.
Safety has also improved with the introduction of non-flammable solid electrolytes. These materials reduce fire risks, making batteries safer for residential and industrial use. Faster charging capabilities further enhance their suitability for high-demand scenarios, such as electric vehicles and grid stabilization.
Feature | Description |
|---|---|
Enhanced Safety | Non-flammable solid electrolytes reduce fire risks. |
Improved Longevity | Longer lifespans compared to traditional lithium-ion batteries. |
Faster Charging | Suitable for high-demand applications. |
Alternative Energy Storage Solutions
Beyond batteries, alternative energy storage solutions offer diverse benefits. Pumped hydro systems provide large-scale storage with long discharge durations, making them ideal for grid applications. Hydrogen storage, with its high energy capacity and scalability, supports long-term energy needs. Flywheels deliver rapid response times and high cycling capabilities, while thermal systems excel in industrial processes requiring efficient heat management.
Energy Storage Solution | Key Performance Metrics | Source |
|---|---|---|
Lithium-ion Batteries | ||
Pumped Hydro | Large capacity, long discharge duration | |
Hydrogen Storage | High energy capacity, scalability | |
Flywheels | Rapid response, high cycling capability | |
Thermal Systems | Efficient for specific industrial needs |
These solutions expand the range of energy storage technologies, addressing diverse needs across residential, commercial, and industrial sectors.
AI and Big Data in Energy Storage Optimization
Artificial intelligence (AI) and big data analytics are transforming energy storage systems. AI enhances power consumption management by automating processes and improving performance. Predictive analytics, powered by real-time monitoring, optimizes energy usage and reduces inefficiencies. For example, AI algorithms maintain voltage profiles, decreasing transmission losses and improving power factors.
Application Area | Description |
|---|---|
Power Consumption Management | AI approaches enhance power consumption management through automation and improved performance. |
Energy Storage Management | AI improves energy storage management, optimizing usage and efficiency. |
Predictive Analytics | Utilizes real-time monitoring and adjustments in energy systems to enhance performance. |
Fault Rate Reduction | AI algorithms tackle issues with system frequency fluctuations and reduce fault rates. |
Voltage Profile Maintenance | Maintains voltage profiles to decrease transmission losses and improve power factor. |
Demand Response Metering | AI enables intelligent energy storage and demand response metering for better energy management. |
By leveraging AI and big data, energy storage technologies achieve higher efficiency, reliability, and adaptability. These tools ensure that systems meet the growing demands of modern energy infrastructure.
Real-World Applications of Energy Storage
Global Success Stories
Energy storage systems have transformed energy infrastructure worldwide, delivering measurable benefits. Several projects highlight their success.
Clarios, a global leader in advanced battery technologies, migrated 75% of its enterprise applications to Microsoft Azure. The company rehosted and refactored 200 applications, completing the project four months ahead of schedule and 8% under budget. This initiative saved $10 million annually.
The Hornsdale Power Reserve in South Australia, equipped with a large-scale lithium-ion battery, has reduced grid service costs by millions of dollars annually. It also stabilized the grid during outages, showcasing the reliability of energy storage.
In Germany, the Feldheim energy village uses a combination of wind turbines, solar panels, and battery storage to achieve energy independence. This model demonstrates how communities can leverage energy storage to meet local energy needs sustainably.
These examples illustrate the versatility and impact of energy storage systems in diverse settings.
Residential, Commercial, and Industrial Applications
Energy storage systems serve a wide range of applications across residential, commercial, and industrial sectors. In homes, battery storage systems allow residents to store surplus solar energy for use during peak demand. This reduces reliance on the grid and lowers electricity bills. For example, homeowners in California have adopted energy storage to maximize the benefits of rooftop solar panels.
In commercial settings, businesses use energy storage to manage peak loads and reduce operational costs. Retail chains and office buildings often deploy battery systems to ensure uninterrupted power during outages. Industrial facilities benefit from large-scale energy storage by stabilizing energy supply for heavy machinery and reducing downtime.
These applications highlight the adaptability of energy storage systems in meeting the unique needs of different sectors.
Lessons from Large-Scale Projects
Large-scale energy storage projects provide valuable insights into best practices and challenges. The deployment of Tesla’s Megapack batteries in California’s Moss Landing facility demonstrated the importance of scalability. This project, one of the largest in the world, underscored the need for robust safety measures after a fire incident prompted design improvements.
Another lesson comes from the UK’s Smarter Network Storage project, which revealed the economic benefits of integrating energy storage with grid operations. The project reduced grid reinforcement costs and improved energy efficiency.
These examples emphasize the importance of planning, safety, and economic analysis in large-scale energy storage projects. They also highlight how lessons learned can drive innovation and improve future deployments.
Energy storage plays a pivotal role in modern energy systems by ensuring a reliable and efficient power supply. These systems balance energy supply and demand, reduce waste, and enhance the integration of renewable sources like solar and wind. By storing surplus energy during peak production and releasing it when needed, they maximize the use of clean energy while maintaining grid stability.
The decreasing cost of battery production and government incentives have accelerated the adoption of energy storage. Emerging technologies, such as advanced solid-state batteries and hydrogen storage methods, promise to revolutionize the industry. Projections indicate that the energy storage market could surpass USD 1.72 trillion by 2032, underscoring its growing significance. As innovation continues, energy storage systems will remain essential for a sustainable and resilient energy future.
FAQ
What is the main purpose of energy storage systems?
Energy storage systems store surplus energy for later use. They balance supply and demand, improve grid stability, and support renewable energy integration. Their primary goal is to ensure a reliable and efficient energy supply.
How do energy storage systems support renewable energy?
Energy storage systems address the intermittency of renewable sources like solar and wind. They store excess energy during peak generation and release it during low production periods, ensuring consistent power availability.
What are the most common types of energy storage systems?
The most common types include batteries (e.g., lithium-ion), pumped hydro, thermal storage, and hydrogen storage. Each type serves specific applications, such as grid stabilization, industrial processes, or residential energy needs.
Are energy storage systems environmentally friendly?
Yes, energy storage systems reduce reliance on fossil fuels and lower greenhouse gas emissions. By supporting renewable energy, they contribute to a cleaner and more sustainable energy future.
How does AI improve energy storage systems?
AI optimizes energy storage by predicting usage patterns, managing power consumption, and reducing inefficiencies. It enhances system reliability and performance through real-time monitoring and intelligent adjustments.
